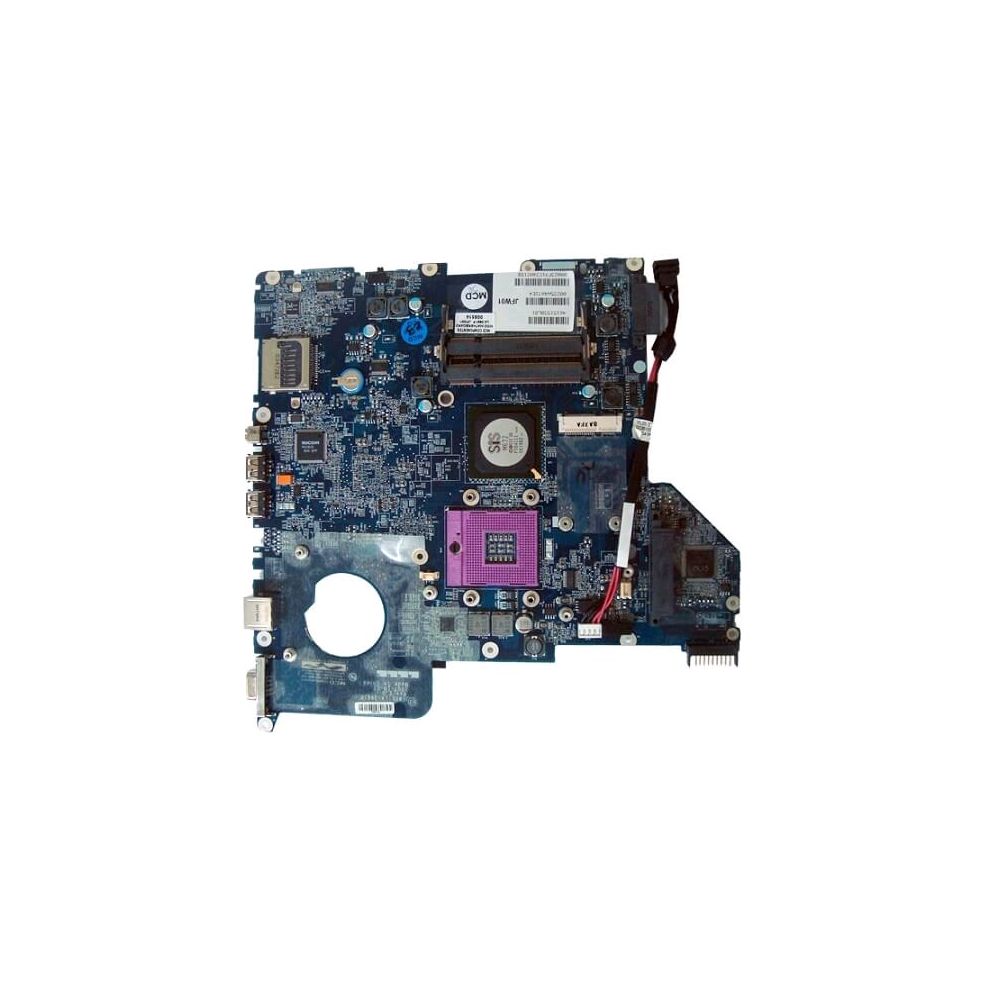

Motherboard para Notebook JFW01 Amazon PC

1. Dimension
337.5mm(W) x 245.5mm(D)x 35.4mm(H) on front side, 39.4mm on rear side

2. Weight
2.4 kg with 14.1”WXGA & 6cell battery.

3. CPU
Intel Merom :
Dual core processor; FSB 533MHz
On-die,32KB instruction cache and 32KB write-back data cache
On-die, 1MB L2 cache
Intel Merom-Celeron M

4. Chipset
SiS M672 + SiS 968
Merom processor support
533MHz FSB support

5. Memory
No on board memory
Support DDR-II 667MHz
Two SODIMM with 512MB/1GB modules
Easy upgrade for two SODIMM.
Max. 2 GB

6. ODD
Fixed 12.7mm height PATA
Combo(CD-RW/DVD-ROM)
DVD-RAM/-R/-RW readable (Super Multi)

7. HDD
9.5mm, 2.5" S-ATA HDD support with 60/80/120/160GB (5400rpm)capacity
9.5mm, 2.5" S-ATA HDD support with 80/100GB (7200pm)capacity- Easily removable

8. Display
Support 14.1” WXGA(1280 x 800)

9. Graphics Chip
Mirage 3+, 256MB share from system memory
SiS 307ELV for LVDS

10. Audio
Realtek ALC268
2 channel HD Audio
Compliant with Universal Audio Architecture
95dB SNR DACs / 90dB SNR ADCs can meet Vista Premium requirement
Microphone-in and headphone-out
Two stereo 1.5W speakers with chamber
Volume control: Hot-key control for Windows

11.PCI-Express card
34/54mm PCI Express card x1
12. Comm.
A. Modem(Option)
B. LAN
C. WLAN
D. Bluetooth(Option)
E. Camera(Option)
A. Internal Modem with MDC 1.5 solution V.92/56K bps; V.90/56K bps
B. Realtek RTL8102E, 10/100M LAN
C. Wireless LAN, 802.11b/g, via Mini-Card interface
D. Bluetooth Ver. 2.0 module with USB2.0 interface
E. 1.3M Pixel CMOS via USB2.0 interface

13. Keyboard
85/ - 86 keys support with 101/102 key emulation without stick-point.
Windows key, Application key
Standard pitch, 3.0mm travel length.
Multi-Language support.

14. Pointing Device
Touch Pad with two buttons

15. Media card reader(Option)
3-in-1 Card Reader (SD, MMC, MS, MS Pro)

16. IEEE 1394
Option (together with Media Card Reader).

17. I/O ports
Express Card 34/54mm x 1
RJ-45 jack x 1
RJ-11 jack x 1(Option)
Headphone-out x 1
Microphone-in x 1
3-in-1 Card Reader x1(Option)
USB 2.0 x 2
Power USB x 2
RGB; VGA port x 1, 15pins
DC-in jack x 1
Kensington lock x 1
IEEE 1394 x 1(Option)

18. System Status Indicators (UI spec)
1 LED for Power Button(Blue)
1 LED for Power USB on(Blue)
1 LED for IDE HDD activity (Blue)
3 K/B indicators: Caps Lock (Blue), and Num Lock (Blue), Scroll Lock (Blue)
2 LED for RJ45 : Connected (Green), and LAN activity(Amber)
1 LED for System status (Power On / Suspend) (Blue)
1 LED for Battery status (Charging / Full / L1 / L2) (Blue/Amber)
1 LED for Wireless LAN & Bluetooth (Blue/Amber/Purple)

19. Control buttons
Power button x 1
Magnetic lid switch control for system standby/wakeup or suspend/resume
Mute button x 1

20. User Keys
Control button for short-Cut key functions
1 WWW (Explorer) key
1 E-mail (Outlook) key
Control buttons for Q-Charging
Q-Charging
Control buttons for Power USB
Power USB (Workable in system off mode)

21. Killer Switch
YES

22. AC Adapter
Universal AC adapter. 100-240V AC, 50-60HZ
65W with 19V DC
3 pin 240V AC cable

23. Battery
6-cell Li-On, 18650 type, 4400/4800mAh
3 hours to complete battery charge from energy empty to full when system off.
Life Cycle: 70% Design Capacity after 300 Cycles in 25degreeC
Battery life: (Tested by Mobilemark2007)
2.0 hrs(typical) with 6 cell(2200mAh) for Celeron
2.5 hrs(typical) with 6 cell(2200mAh) for Merom(with C4)

24. Software
Phoenix First BIOS
Suspend to DRAM/HDD
Security:
Power-On Password, Supervisor Password
HDD password
USB memory Boot support
Support SMBIOS 2.4, PCI2.2
Support PXE
Wake on LAN from S3
Wake on LAN form S4/S5 in AC mode

25. OS
Windows XP(32bit) / Vista (32bit)

26 Mini Card
1 Mini-card slot.

27. Security
HDD Password
Kensington lock

28. Regulatory
EMI: FCC-B, CE, CCC, C-Tick, VCCI, BSMI
Safety: Compliant to UL/CSA, TUV, CB
PTT: FCC-Part 68, CTR 21
MDA2005 Compliant
WHQL LOGO

Garantia: 90 dias
